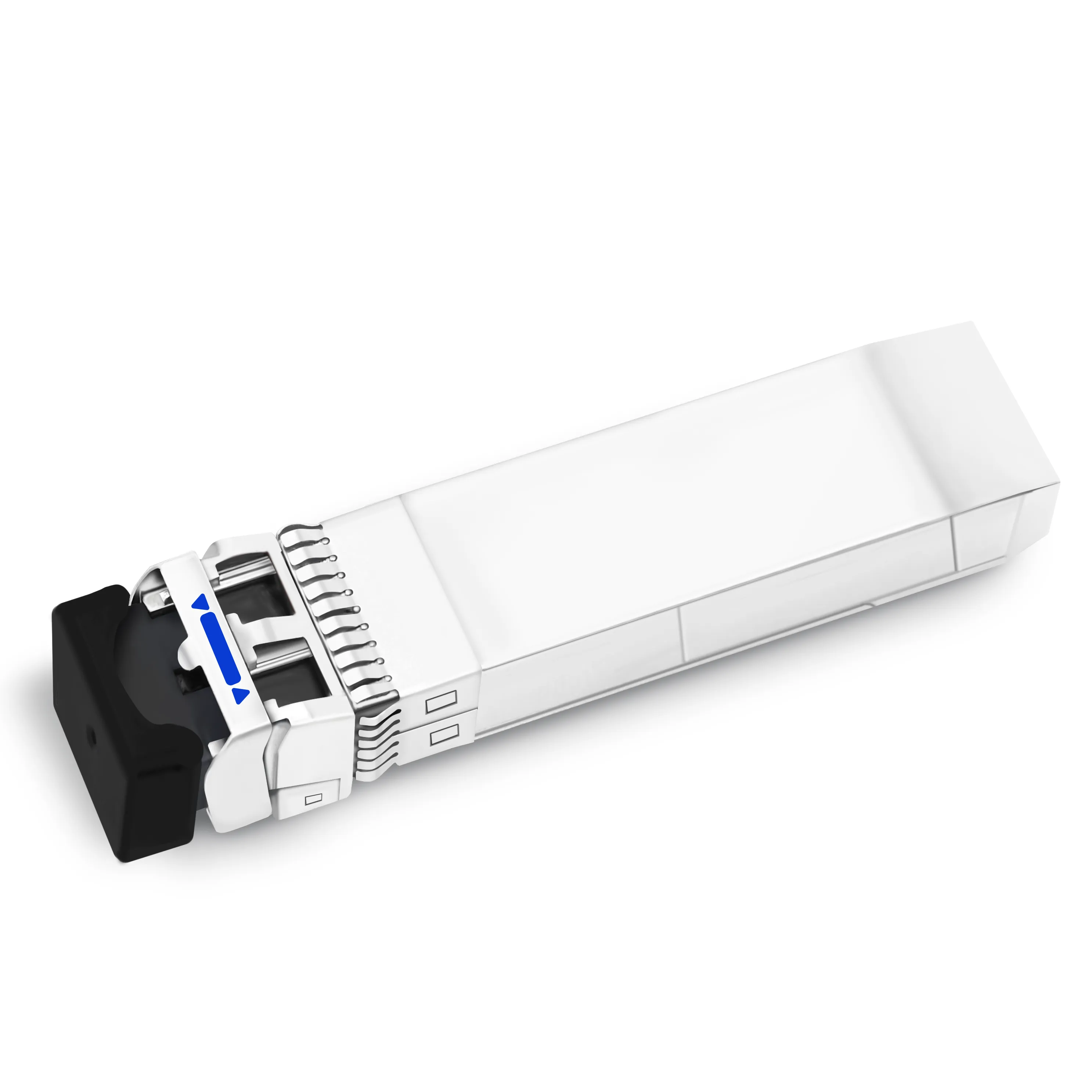

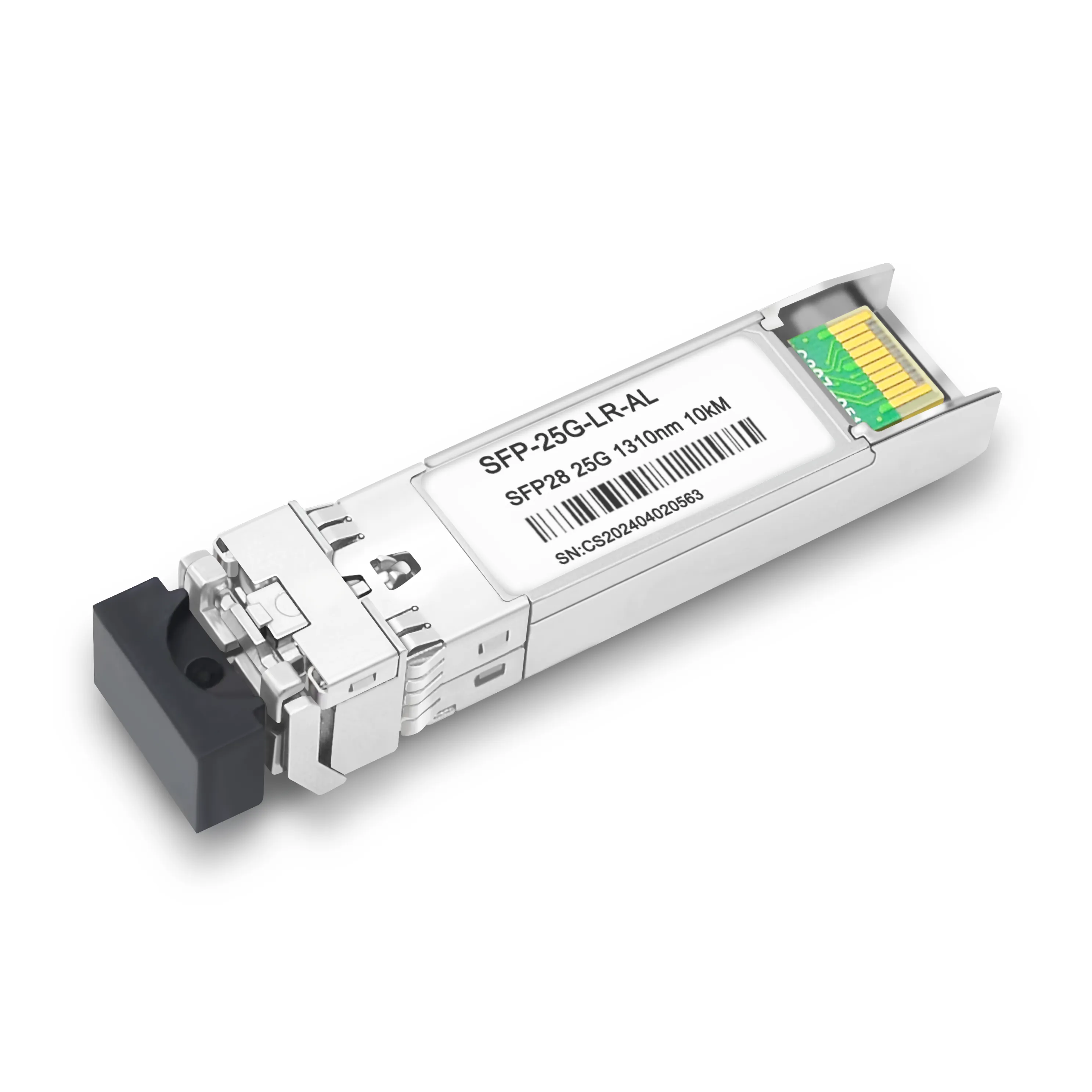

LR SFP28 transceiver modules are designed for use in 25 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the SFF-8431, SFP28 MSA, IEEE 802.3cc.The optical transceiver is RoHS compliant.
Share:
Hot-pluggable SFP28 form factor
Supports 25.78125Gb/s aggregate bit rate
Power dissipation <1.8W
Commercial case temperature range of -40°C to 85°C
Single 3.3V power supply
Maximum link length of 15km on Single Mode Fiber (SMF)
Aligned with IEEE 802.3cc
Cooled DML DFB-based O-band LWDM transmitter
25G NRZ retimed 25GAUI electrical interface
Duplex LC receptacles
I2C management interface
RoHS compliant
Ethernet/CPRI
Specification
| Data Rate | 25.78125Gb/s |
| Case Temperature | -40~85℃ |
| Transmitter | Cooled DML O-Band LWDM DFB |
| Wavelength | O-band 1268.24~1319.42nm |
| Power consumption（Max） | 1.8W |
| Distance | 10km/15km |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | LC |
