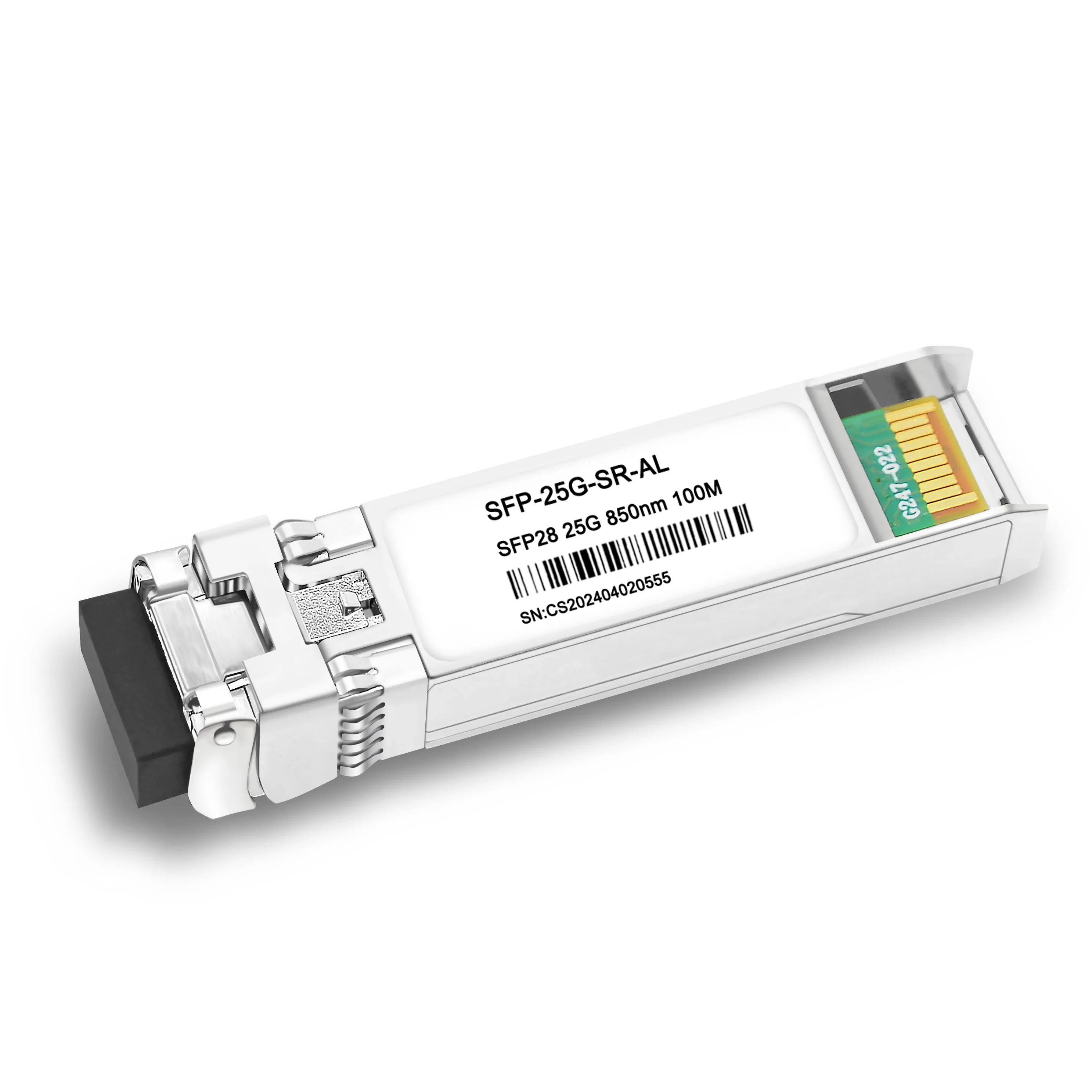

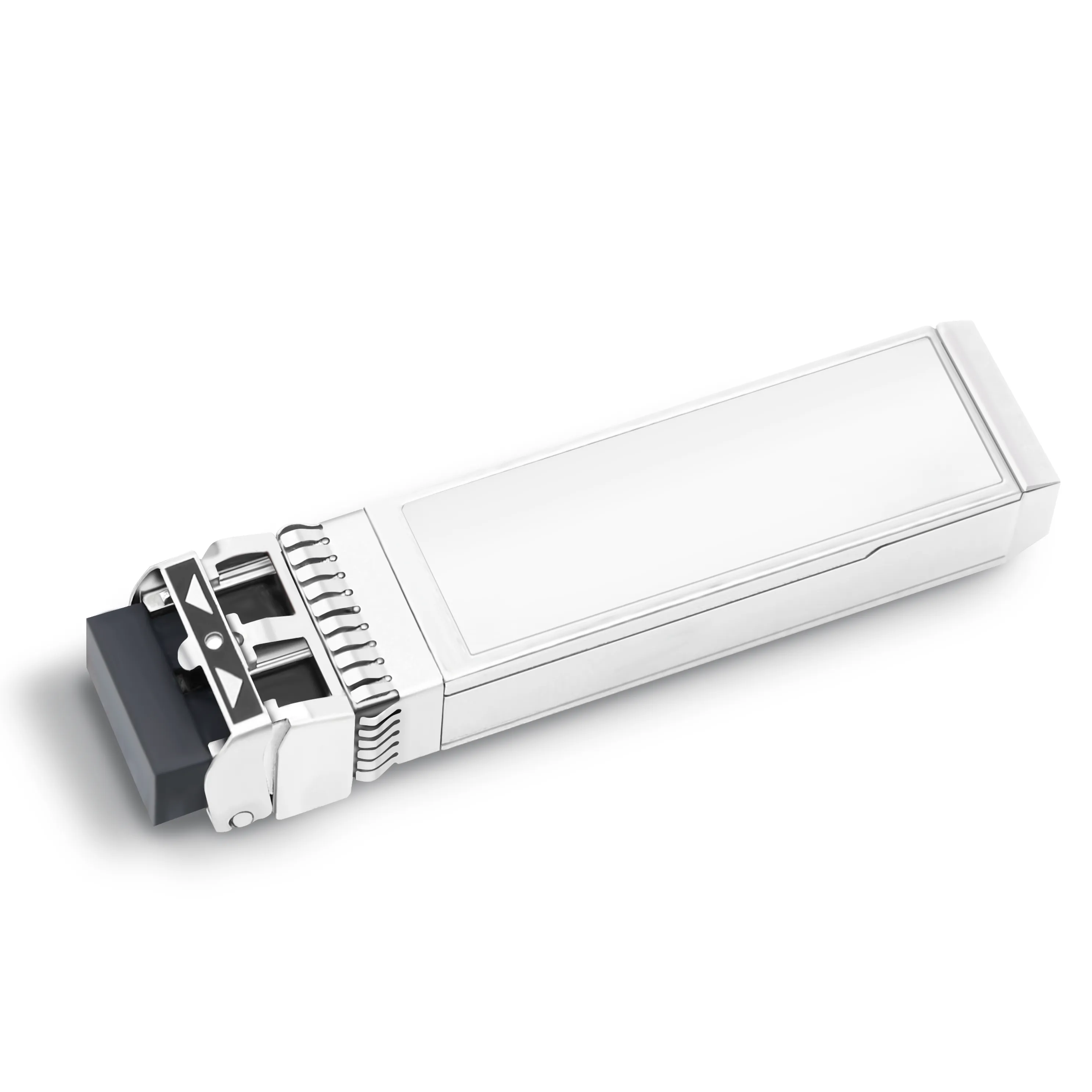

25G SFP28 SR transceiver modules are designed for use in 25 Gigabit Ethernet links on up to 100m of Multi mode fiber. They are compliant with the SFP MSA and IEEE 802.3by. The optical transceiver is RoHS compliant.
Share:
Hot-pluggable SFP28 form factor
Supports 25.78Gb/s aggregate bit rate
Power dissipation <1W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on Multi Mode Fiber (MMF)
Aligned with IEEE 802.3by
25G NRZ VCSEL-based 850nm transmitter
25G NRZ retimed electrical interface Duplex LC receptacles
I2C management interface
RoHS compliant
DATACOM
Specification
| Data Rate | 25.78Gb/s |
| Case Temperature | 0~70℃ |
| Transmitter | Vcsel |
| Wavelength | 850nm |
| Power consumption（Max） | 1W |
| Distance | 100m |
| Voltage Supply | 3.3V |
| Receiver | PIN |
| Connector | Duplex LC |
