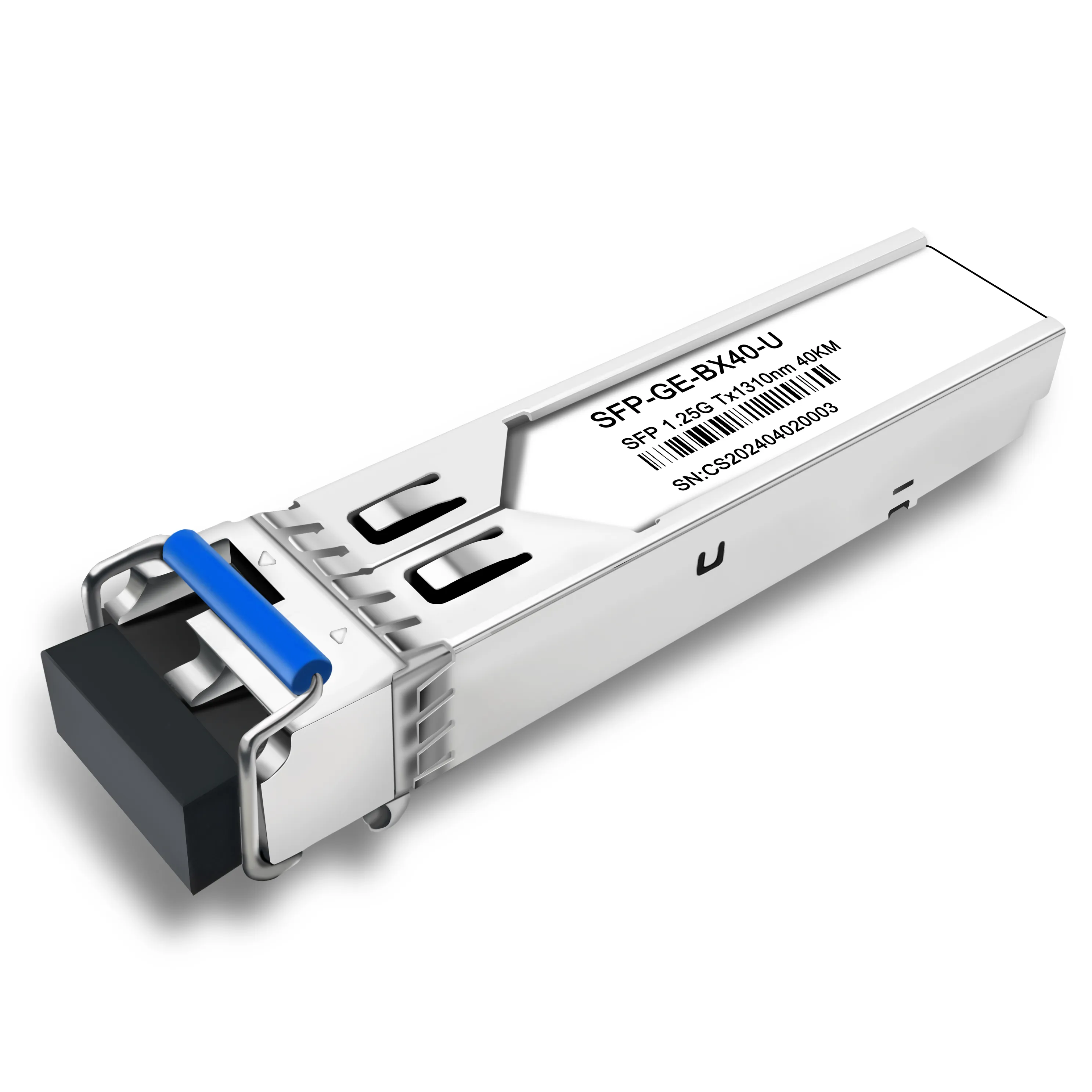

The SFP-GE-BX40-U is a single-fiber bidirectional (BiDi) SFP transceiver, supporting 1.25Gbps (1000BASE-BX) transmission. It uses a single fiber for both sending (1310nm) and receiving, enabling 40km long-distance connectivity. Hot-swappable and compliant with SFP MSA standards, it’s widely used in scenarios like enterprise backbone networks and metropolitan area network (MAN) links.
Share:
| Technical Parameters | Detailed Specifications |
|---|---|
| Product Model | SFP-GE-BX40-U |
| Form Factor | SFP (Hot-swappable) |
| Interface Type | LC (single-mode fiber, simplex) |
| Transmission Rate | 1.25Gbps (1000BASE-BX) |
| Wavelength | TX: 1310nm (RX: 1550nm, matching with BX40-D) |
| Transmission Distance | 40km (over single-mode fiber, SMF) |
| Fiber Type | Single-mode fiber (SMF) |
| Power Consumption | ≤1W |
| Operating Temperature | 0℃~70℃ (Commercial grade) |
| Protocol Compatibility | Compliant with IEEE 802.3ah, SFP MSA standards |
| Special Features | Single-fiber bidirectional transmission, DDM/DOM supported |
