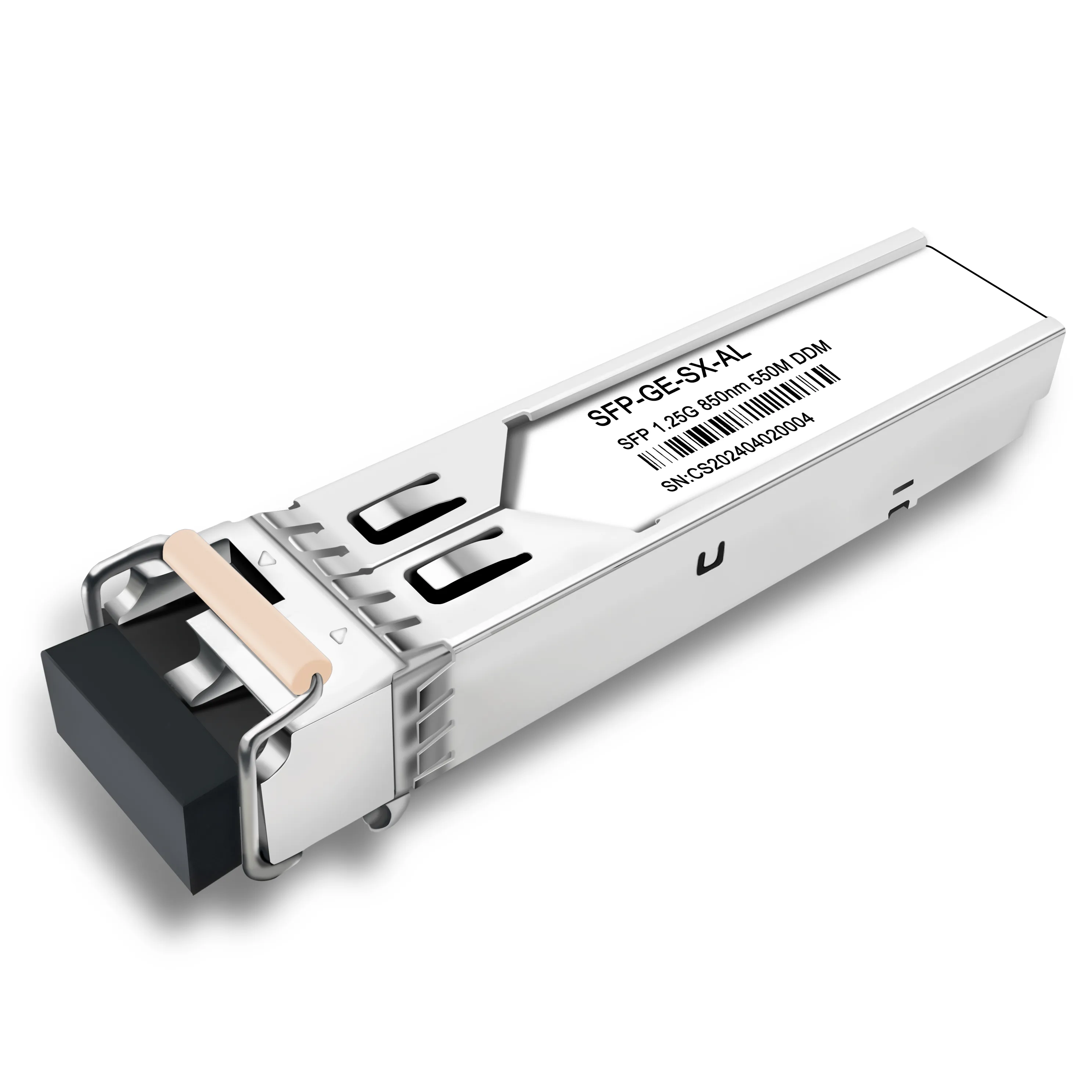

The SFP-GE-SX-AL is a 1.25Gbps (1000BASE-SX) multimode SFP transceiver operating at 850nm wavelength. It supports short-distance transmission (typically 550m over OM3 multimode fiber) and includes DDM (Digital Diagnostic Monitoring) functionality. Hot-swappable and MSA-compliant, it’s commonly used in short-range scenarios like data center server-to-switch links and campus local area networks (LANs).
Share:
| Technical Parameters | Detailed Specifications |
|---|---|
| Product Model | SFP-GE-SX-AL |
| Form Factor | SFP (Hot-swappable) |
| Interface Type | LC (multimode fiber, duplex) |
| Transmission Rate | 1.25Gbps (1000BASE-SX) |
| Wavelength | 850nm |
| Transmission Distance | 550m@OM3 fiber; 220m@OM2 fiber |
| Fiber Type | Multimode fiber (MMF, OM2/OM3/OM4) |
| Power Consumption | ≤1W |
| Operating Temperature | 0℃~70℃ (Commercial grade) |
| Protocol Compatibility | Compliant with IEEE 802.3z, SFP MSA standards |
| Special Features | DDM (Digital Diagnostic Monitoring) supported |
